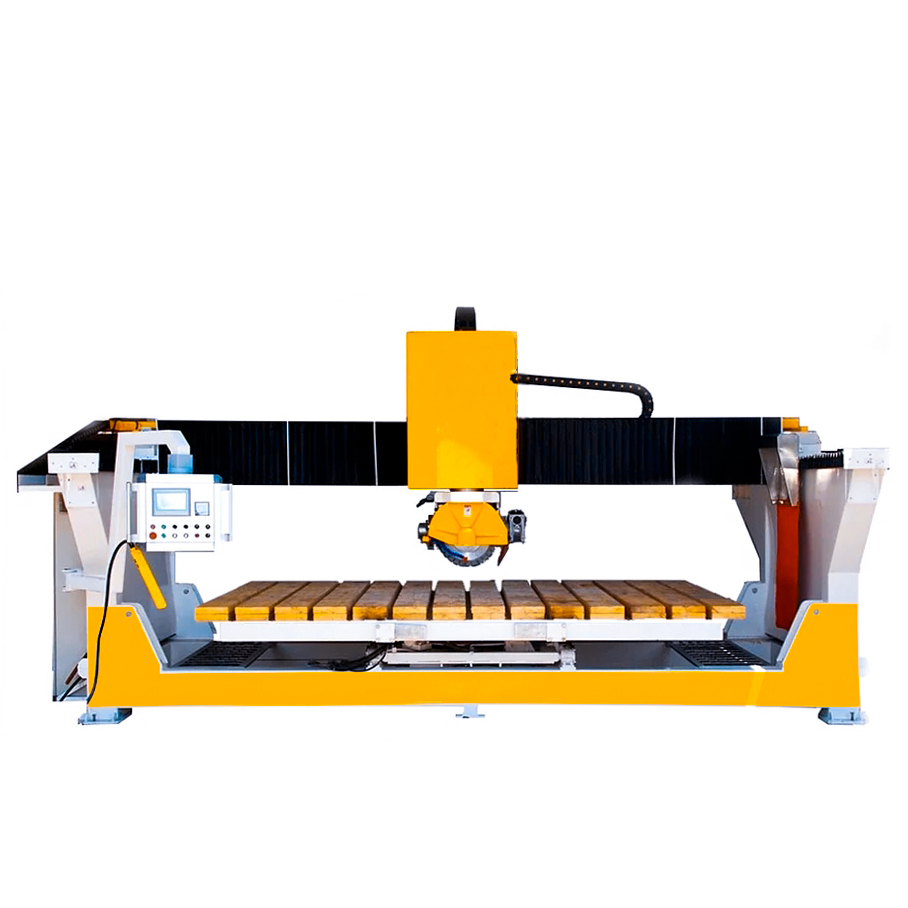

MTHL-450 Infrared Fully Automatic Bridge Type Cutting Machine is a SIEMENS PLC Controlled bridge sawing machine with 3 interpolated axes (X, Y, Z, ), rotating head and fixed work bench, specially engineered to cut and process of marble, granite, or other natural and engineered stones. It is supplied with a PLC of easy and intuitive use to program slabs cutting and cuts and movement.
It is possible to execute linear shaping.

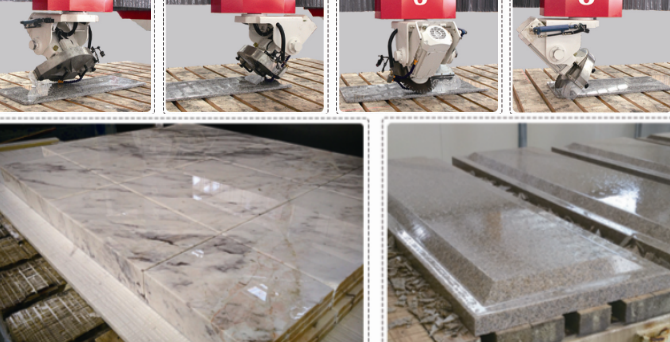

(1)0° - 360° table rotation wherever stop, 0° - 85° table tilting; 0° to360° head rotation and 0° to 45°head tilting.
(2)Different Languages for easy operation.
(3)Mono frame structure. Full machine can be loaded in 20 GP container, So Easy to load, transport and install .Also, it saves more space.
(4)Mono-axial positioning for bridge transaction with encoder.
(5)SIEMENS automatic PLC cutting system. Main components of the bearing is SKF.
(6)Linear guild way for “X, Y, Z” axis to ensure the accuracy.
(7)TELEMECANIC electronic in international standard.Electric and electronic components are easily sourced.
(8)Automatic rotating
