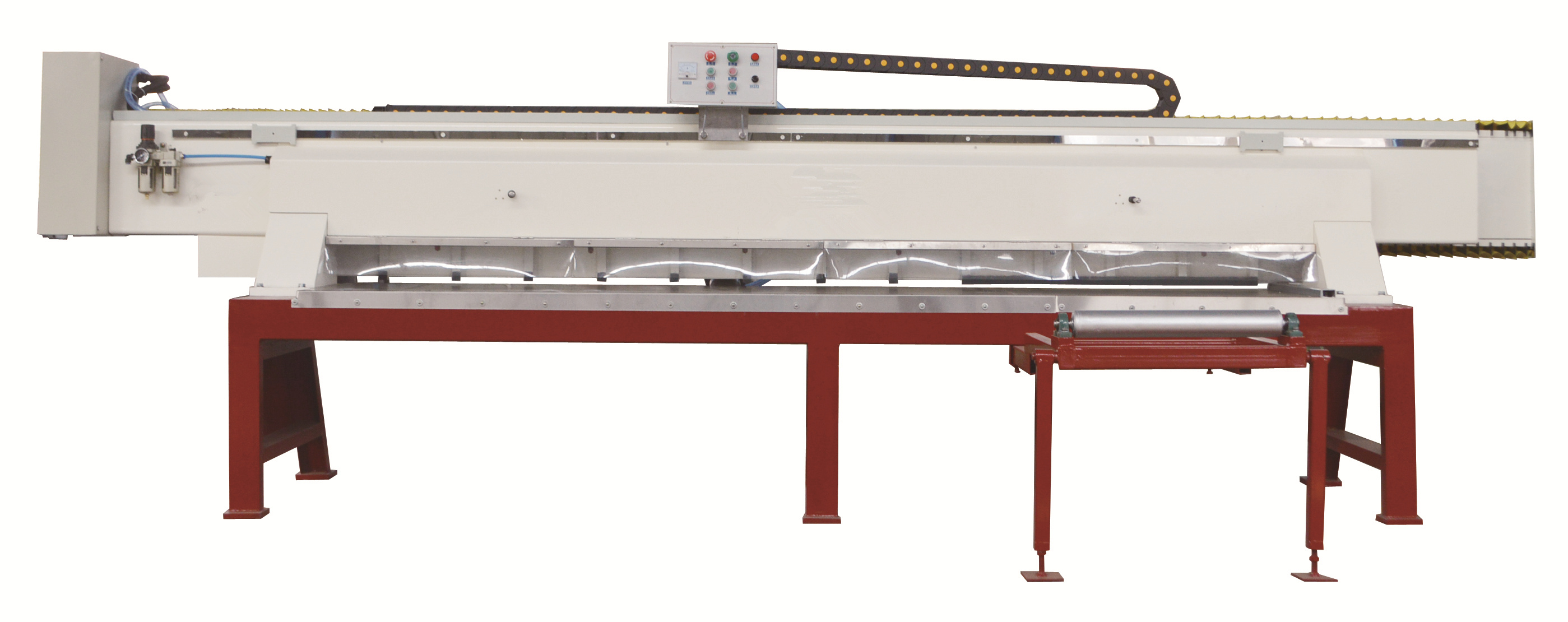

The machine is suitable for chamfering the opposite joint of marble and granite strips. The blade rotates under the driving of motor. Worm gear reducer drives the gear to mesh rack and then drives the blade moving along the linear guide way to finish the whole cutting procedure. The cutting speed can be adjusted by frequency converter.
1.The carling is removable forward and back on the worktable, can do thin plate slotting.
2.Head can rotate 0-90°, chamfering angle is 29-61°.
3.Universal ball, adding the function of lifting slab up and sown with the help of air cylinder.
4.The min. working width is 40mm.
