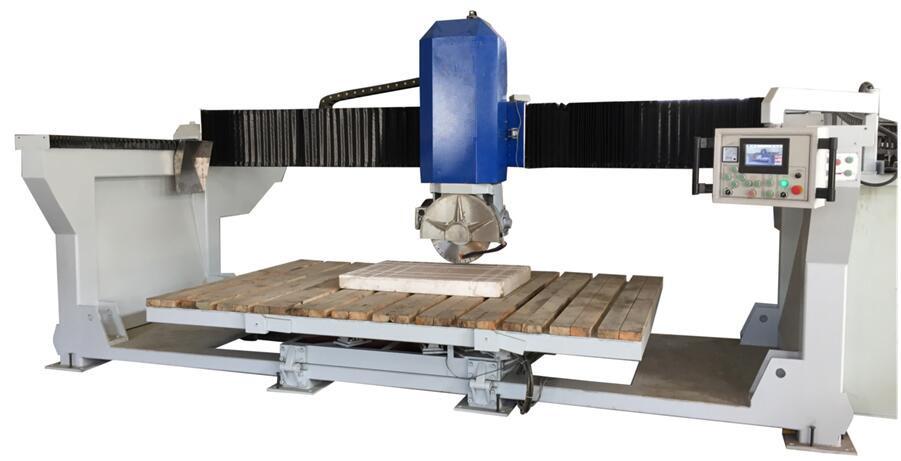

MHT-500 New Designed Monoblock Bridge Saw Machine

infomation:

1.Cutting head can automatically rotate 90°，tilt to 45°.
2.Worktable automatically rotates 45°,90°,180°,270°,360° , tilts 0-85 °.
3.PLC, Electric Control system and Converter adopt the advanced Siemens, Schneider accessories.

Description

Parameter datas:

Model		MTH-500
Max. Blade Diameter	mm	Ф350～Ф500
Dimensions Of Working Table	mm	3200*2000
Main Motor Power	kw	18.5
Head Rotate Angle	°	90°
Head Tilt angle	°	45° (optional)
Table Rotation Angle	°	360° (optional)
Table Tilt Angle	°	0-85°
Water Consumption	m³/h	4
Gross Weight	kg	6000
Dimensions(LWH)	mm	580035002600
