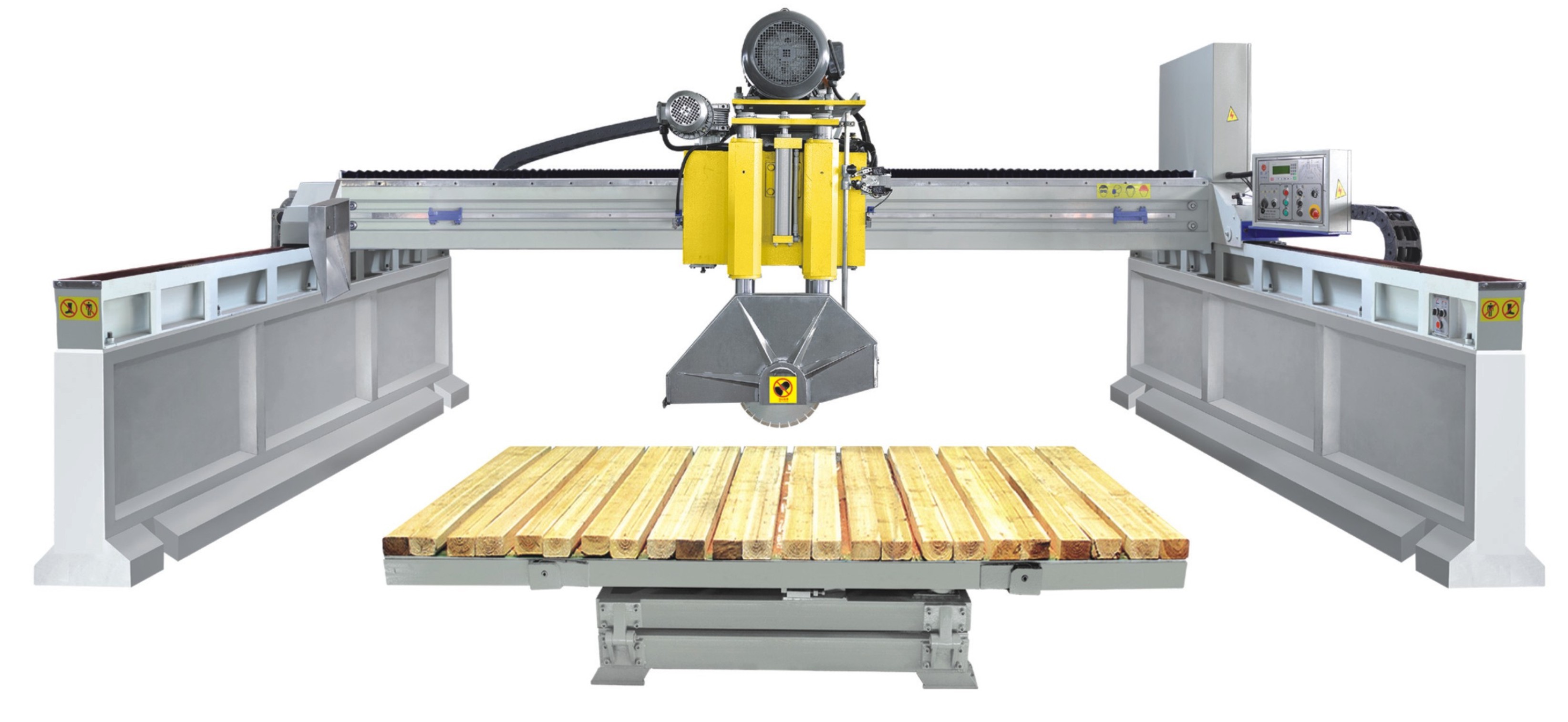

BHT-600Infrared Bridge Cutting Saw Machine
infomation: 1.Controlled by PLC,operated expediently accurately and stably.
2.The support guide way adopts the imported linear guide way to make sure high precision and long life. 3.The main parts and components of the machine(such as frequency converter,magnetic rule,laser reticule apparatus) are all of imported good-quality materials,thus ensuring high precision,stable performance,goodadaptablity as well as high reliablity of the whole machine. |
Model | BHT-400 | BHT-600 | |
Blade Diameter | mm | Ф350~Ф400 | Ф400~Ф600 |
Blade Up/down Stroke | mm | 200 | 380 |
Main Motor Power | kW | 15 | 18.5 |
Feeding Motor Power | kW | 1.5 | 1.5 |
Slicing Motor Power | kW | 1.1 | 1.1 |
Worktable Size(Max. Cutting Size) | mm | 3200*2000 | 3200*2000 |
Worktable Rotation Angle | ° | 0~90 | 0~90 |
Worktable Upturning Angle | ° | 0~85 | 0~85 |
Dimension(L*W*H) | mm | 5870*4700*2520 | 5870*4700*2720 |
Weight | kg | 6000 | 6000 |
