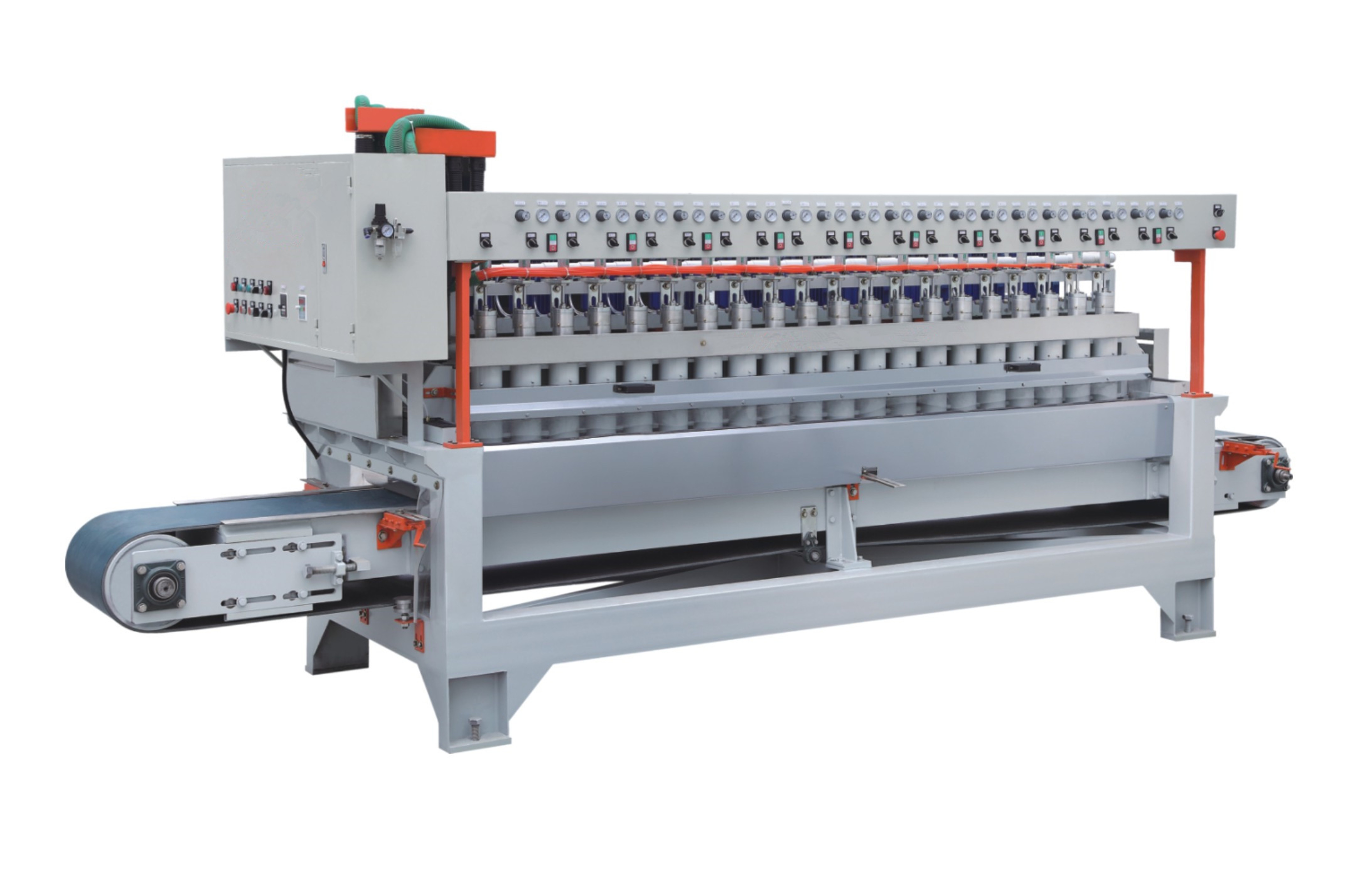

BPGP-600 Mosaic Polishing Machine
infomation: Full automatic polishing machines are widely used in mosaic production line.
Can work on mosaic pieces /finished mosaic with net/ tiles under 5cm thickness. Can produce polished surface/honed surface/antique surface . Can work on granite/marble/sandstone/ceramic No damage for the surface. Reasonable design/Easy to operate . High automation, high efficiency and stable products quality |
| Model | BPGP-600-20 | BPGP-600-16 | BPGP-600-14 | BPGP-600-12 | |||
| Polishing Heads | pcs | 20 | 16 | 14 | 12 | ||
| Belt Width | mm | 600 | 600 | 600 | 600 | ||
| Polished Section Diameter | mm | Φ125 | Φ125 | Φ125 | Φ125 | ||
| Max. Processing Size | mm | 350 | 350 | 350 | 350 | ||
| Grinding Head Power | kw | 3kw*10 | 3kw*8 | 3kw*7 | 3kw*6 | ||
| Swing Motor Power | kw | 0.75 | 0.75 | 0.75 | 0.75 | ||
| Max Polishing Thickness | mm | 50 | 50 | 50 | 50 | ||
| Polishing Speed | m/min | 1~6 | 1~6 | 1~6 | 1~6 | ||
| Total Weight | kg | 3200 | 3000 | 1800 | 1600 | ||
| Total Power | kW | 33.75 | 27.75 | 24.75 | 21.75 | ||
| Overall Dimensions(L*W*H) | mm | 4800*1800*2000 | 4700*1800*2300 | 4000*1800*2000 | 3800*1800*2000 | ||
