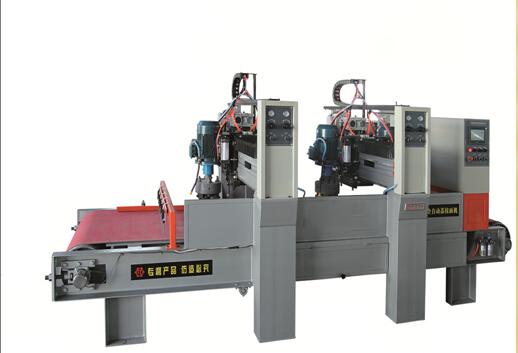

B-Q4-1000 Four Heads Automatic Stone Bush Hammer Machine
infomation: Four-head litchi surface machine is the second geneartion full-automatic litchi surface machine, with application of touching screen human-machine interface, which increases relay protection and fault auto-analysis function, so that the operator can notice the falut cause as soon as possible and make maintenance work accordingly. It reduces the maintenance time, and improves service efficiency. The production efficiency is 2 times of double-head litchi surface machine.
1.It can process 800-1000mm (customized according to customer's requirements) 2.The grinding heads of the two beams are all entirely controlled by computer. They can either operate at the same time, or individually. 3.The two beams operate alternately, to avoid grinding repeat and make the surface more even, classical and beautiful 4. When processing litchi antique surface, the NO. 3 and 4 grinding heads can be changed to polishing brush, so that the NO. 1 and 2 grinding heads process litchi surface and No. 3 and 4 grinding heads process polishing work so as to finish the whole process sucessfully at one time. It effectively reduces cost and achieves more efficien |
Model |
|
B-Q4-1000 |
Main motor power |
kW |
3 |
Walking motor power |
kw |
1.5 |
Total Power |
kW |
16.5 |
Main motor speed |
R/MIN |
960 |
Working environment temperature for device |
℃ |
-15-+40 |
Power supply for device |
V/HZ |
AC380±10% 50 |
Max. Processing Width |
mm |
1000 |
Overall Dimensions(L*W*H) |
mm |
4350X2250X1800 |
Weight |
kg |
2680 |
Capacity(M2/H) |
(M2/H) |
60-80 |
