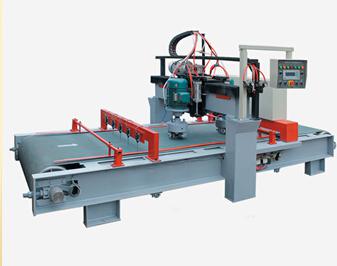

B-Q2-1000 Double Head Automatic Stone Bush Hammer Machine
infomation: Double-head litchi surface machine is full-automatic with continous plates feeding system through belt. It initiates many apparatus in China. The efficiency is 3-4 times of single-head litchi surface machine, with high efficiency, low cost, uniform and nice surface processing performance.
1. It applies to the surface process for various kinds of granite and marble. 2. It is newly designed, with dual grinding heads and conveyor type automatic continous processing technology. It has rational construction, perfect processsing technology, stable performance, easy operation, and it is energy-efficient. 3. It uses PLC control, with entire intelligent operation. The feeding plate is equiped with computer scanning device, so that the grinding head can achieve automatic rising and avoiding function. 4. It is designed with manual-automatic switching function. The lifting and falling of grinding head can be controlled at will, with flexible operation. |
Model |
|
B-Q2-1000 |
Main motor power |
kW |
3 |
Walking motor power |
kw |
1.5 |
Total Power |
kW |
8.6 |
Main motor speed |
R/MIN |
980 |
Working environment temperature for device |
℃ |
-15-+40 |
Power supply for device |
V/HZ |
AC380±10% 50 |
Max. Processing Width |
mm |
1000 |
Overall Dimensions(L*W*H) |
mm |
3400*2150*1800 |
Weight |
kg |
2000 |
Capacity(M2/H) |
(M2/H) |
30~50 |
