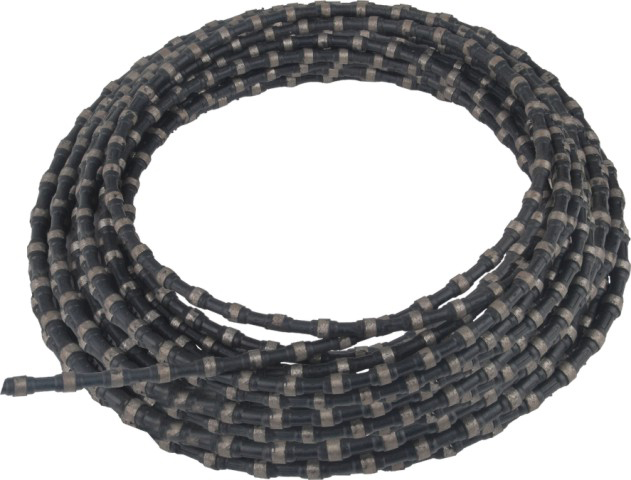

Diamond Wire
infomation: At present, the diamond wire has already used more and more for quarries. It has more advantage than traditional quarry operation. It is high efficiency and high output and lower waste of quarry resource. It can be used for great area cutting .The block is regular, without internal injury, It is low-noisy, no-dust and safe operation. 1．The wire allows significantly greater sawing heights than large discs.
2．Thinner cutting width, and more precise . 3．By virtue of its reliability, adjust the cutting techniques according to different stone material. 4．Noise nuisance generated by diamond wire saw is significantly less than produced by other sawing techniques. |
|
Spec |
Function |
Weight（g/m） |
Bead No |
Cutting Speed㎡/h |
|
Φ7.3 |
Granite special shaping（plastic) |
165±5 |
33 |
5~10 |
|
Φ8.0 |
Granite special shaping（plastic)） |
170±5 |
37 |
2~5 |
|
Φ8.5 |
Marble special shaping（plastic) |
175±5 |
33 |
3~8 |
|
|
Granite special shaping（plastic)） |
180±5 |
37 |
2~4 |
|
Φ9.0 |
Marble special shaping（plastic)） |
190±5 |
33 |
3~8 |
|
|
Granite special shaping（plastic)） |
190±5 |
37 |
2~4 |
|
Φ10.5 |
Marble trimming（plastic) |
245±5 |
30 |
3~8 |
|
|
Granite trimming（plastic) |
270±5 |
37 |
2~4 |
|
|
Reinforced concrete cutting（Rubber+Spring） |
295±5 |
40 |
2~5 |
|
Φ11 |
Marble Mining（Spring） |
300±5 |
28 |
6~10 |
|
|
Marble Mining（Rubber、Plastic） |
300±5 |
40 |
|
|
|
Granite Mining（Spring） |
280±5 |
40 |
6~10 |
|
|
Reinforced concrete cutting（Rubber+Spring） |
295±5 |
40 |
2~4 |
|
Φ11.5 |
Marble Mining（Spring） |
345±5 |
28 |
2~5 |
|
|
Granite Mining（Rubber、Plastic） |
345±5 |
40 |
4~8 |
