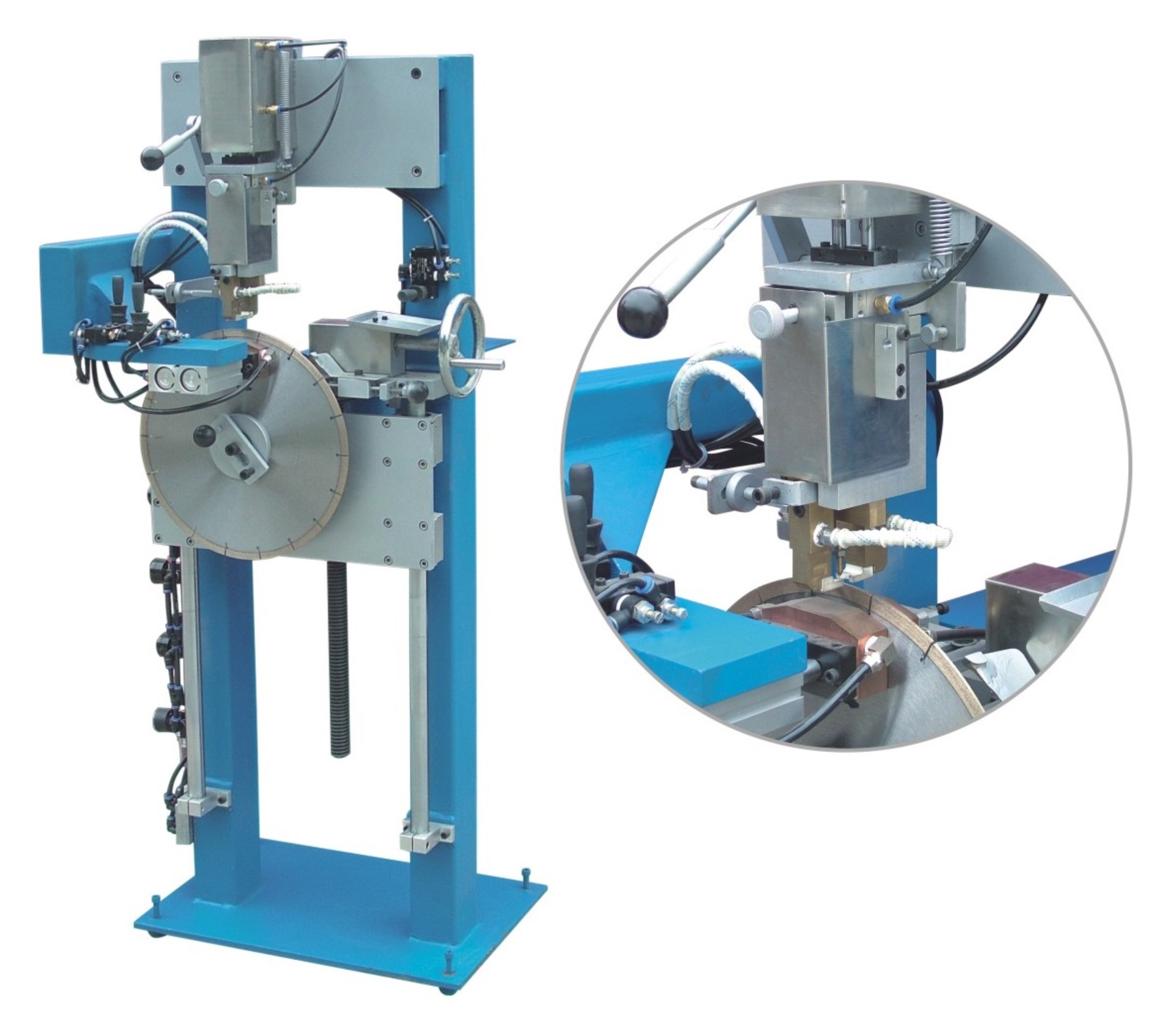

BLQK Welding Rack

BLQK Welding Rack

infomation:

Parameter datas:

Model		BLQK-22	BLQK-25	BLQK-30	BLQK-35
Welding Range(Blade Diameter)	mm	Ф350～Ф2300	Ф350～Ф2600	Ф350～Ф3100	Ф350～Ф3600
Verticality	mm	≤±0.03	≤±0.03	≤±0.03	≤±0.03
Depth of Parallelism	mm	≤±0.03	≤±0.03	≤±0.03	≤±0.03
Welding Speed	pcs/h	200～360	200～360	200～360	200～360
Pressure Of Air Power	MPa	0.8	0.8	0.8	0.8
Pressure Of Water Power	MPa	≥0.2	≥0.2	≥0.2	≥0.2
Motor Power	kW	0.6	0.8	1.2	1.5
Water Consumption	m3/h	2	2	2	2
Weight	kg	155	200	260	300
Overall Dimension	mm	9006702150	9006702150	10006702400	10006702650
