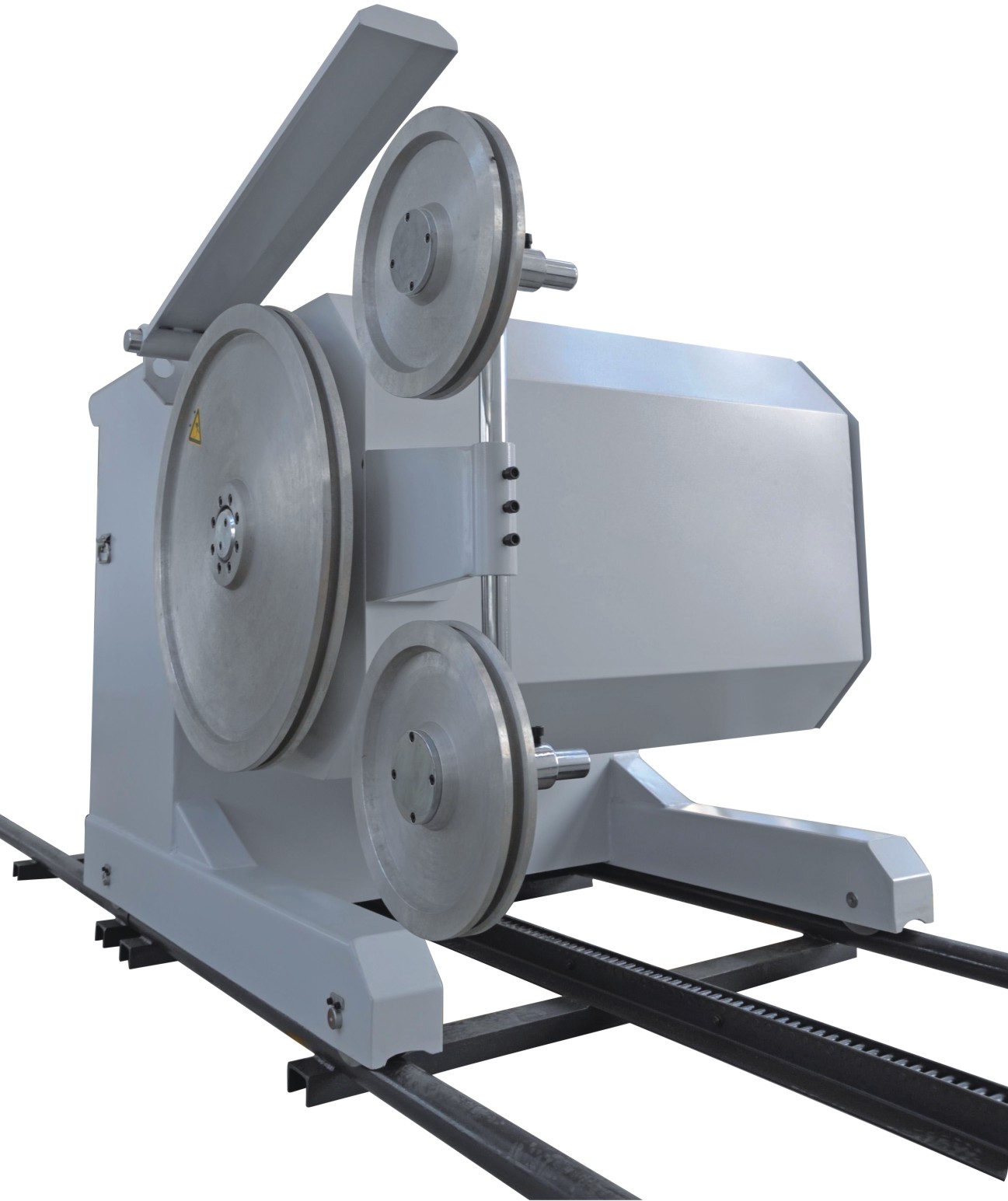

Adopt to dual frequency conversion control system design, with fully automatic constant tension control system, fast running system, automatic protection function and automatic control function of cutting process, the machine can automatically adjust the wire saw feed rate based on its own load, to maintain the tension of balanced during the diamond wire rope in the operating process,thereby extending the life of diamond wire rope and to ensuring the continuity of the cutting process。
1. It can used in the uneven ground mines.
2. It needs to use the hole driller to drill holes and then needs a professional operation to make the rope perforation, but it’s easy to do the hole drilling and rope perforation.
3. It has high efficiency(the following datas are based on China mining efficiency):
37kw diamond wire saw machine can cut marbles 3~5m³/h(7~8m³/h much soft marbles.);
45 kw diamond wire saw machine can cut marbles 5~10m³/h
55 kw diamond wire saw machine can cut marbles 10~15m³/h
55 kw diamond wire saw machine can cut granites 5~10m³/h
75 kw diamond wire saw machine can cut granites 8~20m³/h
4. It can cut the stones into regular or irregular blocks with different sizes. And it can cut the stones from different direction.
5. It has a good splitting effect and cut out blocks with less cracks, so it can reduce the waste of resources;
6. It has Less noise and less dust when the diamond wire saw machine is working, so it is environmental friendly and makes a safe working environments for the workers;
7. It has deep cutting depth: 10~20m depth or can even deeper than that.
8. It can cut various kinds of stones: granite, marble, quartz, sandstone, etc.
