Kerbstone Processing Line

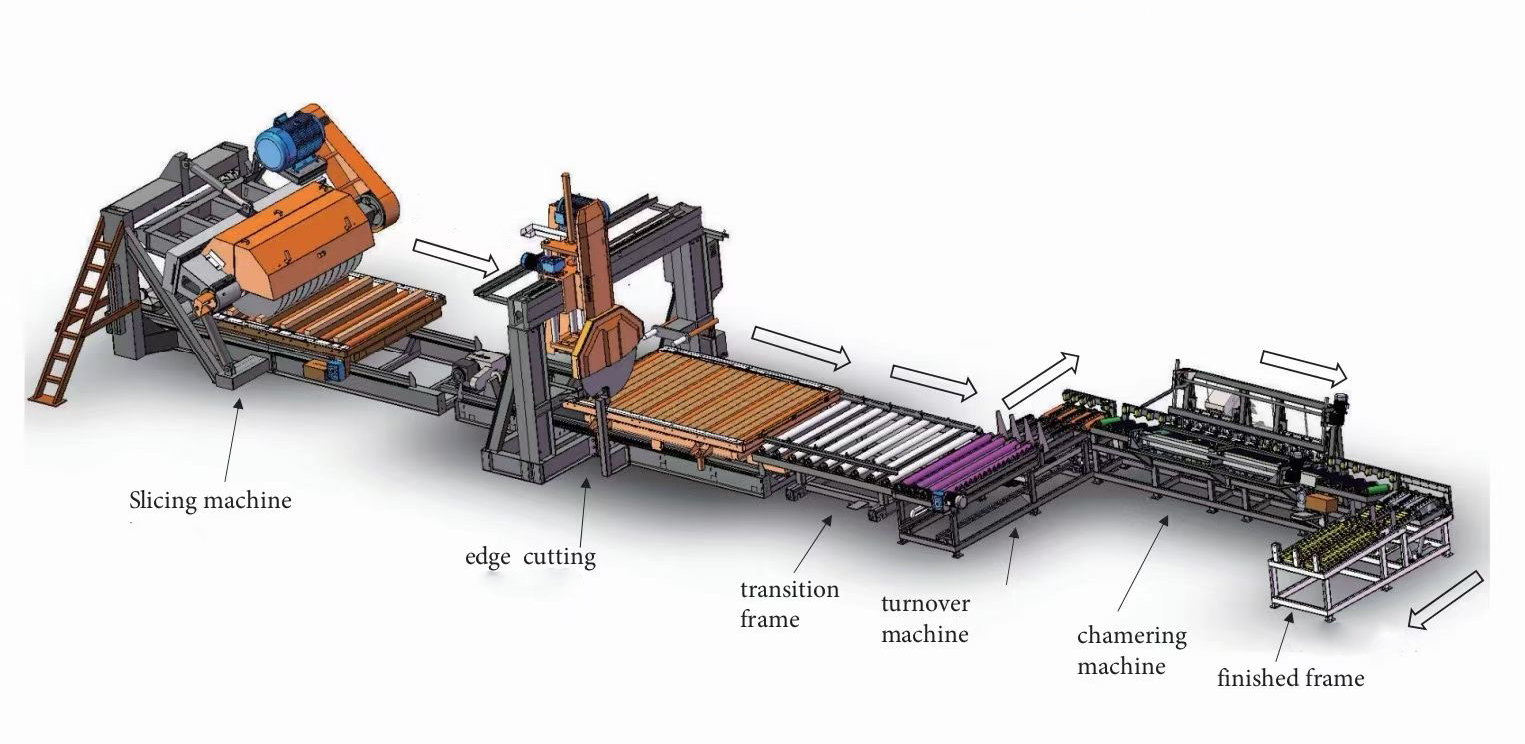

infomation: The curbstone production line is a combination of a multi blades slicing machine, edge cutting machine and chamfering machine. With rails and conveying trolleys which helps to achieve fully automation production,curbstones cutting and chamfering can be completed at one time, featured with high production efficiency , labor saving, space saving.
|
Model |
MTDF-1200-14 |
MTDF-1200-1 |
Dimension |
5800*3500*2500mm |
5800*3500*2800mm |
Weight |
10T |
9T |
Max cutting thickness |
450mm |
450mm |
Worktable Size |
2500*1800mm |
2500*1800mm |
Nax stroke |
600mm |
600mm |
Max cutting width |
1800mm |
1800mm |
Main motor power |
55kw-6 |
22kw-6 |
Max blades number |
14 PCS |
1 PC |
Spindle diameter |
120mm |
50mm |
Blades diameter |
1200mm |
1200mm |
Water consumption |
20m³/hour |
