Tools

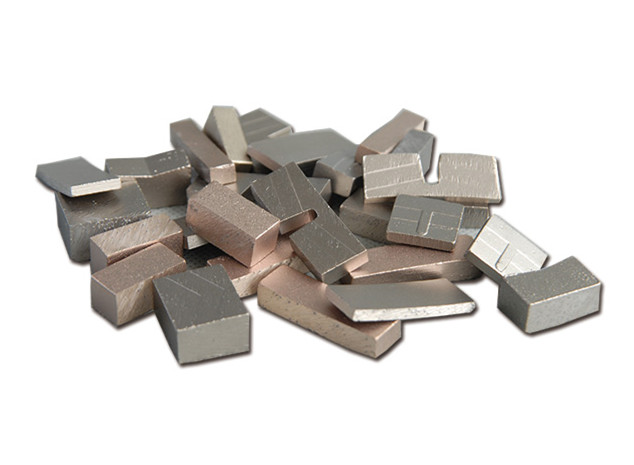

Diamond Segment
infomation:
Segment is the main part of diamond tools, Our diamond segments are working very well specially on granite & Marble, different diamond saw segment dimension is available according to your requirements.
Most segments are Cobalt bond with Sandwich structure, also we produce one-layer structure segments, multi-layer structure segments and so on.

Description


Diameter Size(L*W*H mm) Note
φ350 40*3.0*10 granite
  40*3.2*15 granite
  40*3.2*20 granite
  40*4.2*15 horizontal
  43.3/41.5*3.0*7 marble
  40*3.2*10 marble
  40*3.2*10 cement

φ400 40*3.6*10 granite
  40*3.6*15 granite
  40*4.6*15 horizontal
  43.9/42.0*3.4*8 marble
  40*3.6*8 marble
  40*3.6*10 marble
  40*3.6*10 cement

φ450 40*4.0*10 granite
  40*4.0*15 granite
  40*4.0*20 granite
  40*4.2*10 marble

φ500 40*4.2*10 granite
  40*4.2*15 granite
  40*4.2*20 granite
  40*4.2*8 marble
  40*4.2*10 marble
  40*5.0*10 marble,horizontal

φ600 40*4.8*10 granite
  40*4.8*15 granite
  40*4.8*20 granite
  40*5.0*8 marble
  40*5.0*10 marble

φ700 40*5.2*10 granite
  40*5.2*15 granite
  40*5.2*20 granite
  40*5.2*10 marble

φ800 40*5.8*10 granite
  40*5.8*15 granite
  40*6.0*20 granite
  40*6.0*10 marble

φ900 24*7.0/6.6/6.2*15 v granite
  24*6.8/6.2*13 granite

φ1000 24*7.2/6.6*13 granite
  24*7.0/6.6/6.2*15 V granite
  24*7.5/7.0/6.5*20 V granite
  23*7.2/6.6*13.5/13 M granite
  23*7.4/6.6*15/14.5 M granite
  24*8.0*10 marble
  24*6.8*12 limestone

φ1200 23*7.5/7.0/6.5*13 V granite
  24*7.8/7.2*13 granite
  24*8.0/7.5/7.0*15 V granite
  24*8.0/7.5/7.0*20 V granite
  24*8.2/7.6*13 granite
  24*7.5*10 marble
  24*8.5*10 marble
  40*8.0*10 marble
  24*8.0*15 sandstone
  24*8.5*15 basalt

φ1350 24*8.2/7.6*13 granite
  24*8.0/7.6/7.2*15V granite
  24*8.4/7.9/7.4*20 V granite
  23*8.2/7.6*13.5/13 M granite
  23*8.4/7.6*15/14.5 M granite

φ1600 24*9.4/8.9/8.4*15 V granite
  24*9.4/8.9/8.4*20 V granite
  24*9.0/8.4*13 granite
  24*9.2/8.4*15 granite
  24*9.5*10 marble
  23*9.2/8.8/8.4*15/14.5 M granite
  23*9.0/8.4*13.5/13 M granite

φ1800 24*10.0/9.5/9.0*15 v granite
  24*10.0/9.5/9.0*20 v granite
  23*10.0/9.4*13.5/13 M granite
  23*10.0/9.5/9.0*20/19.5 M granite

φ2000 24*10.6/10.2/9.8*15 v granite
  24*10.6/10.2/9.8*20 V granite
  24*10.6/10.2/9.8*30 V granite
  24*10.6/10.2/9.8*15/14 M granite
  23*11.0/10.5/10.0*20/19.5 M granite
  23*10.6/10.2/9.8*15/14.5 M granite
  24*11.0*10 marble

φ2200 24*11.0/10.5/10.0*15 v granite
  24*11.0/10.5/10.0*20 V granite

φ2500 24*12.0/11.0*15 granite
  24*11.6/11.0/10.4*20 v granite
  24*11.6/11.0/10.4*30 v granite
  23*11.4/11.0/10.6*15/14.5 M granite

φ3000 24*12.5/11.5*15  granite
  24*12.5/12.0/11.5*20 V granite
  24*13.0/12.5/12.0*30 V granite
    granite
φ3500 24*13.5/13.0/12.5*20V granite
  24*14.5/13.5/12.5*30 v granite

Beads   diamond wire saw bead
φ11.5*6.5
φ11.0*6.5
φ8.5*6.5

gang saw 20*5.3/4.7*8
  20*5.3/4.7*10
